Description

Technical Specifications

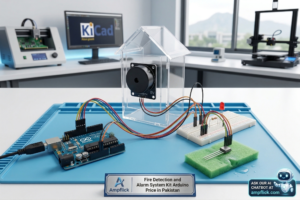

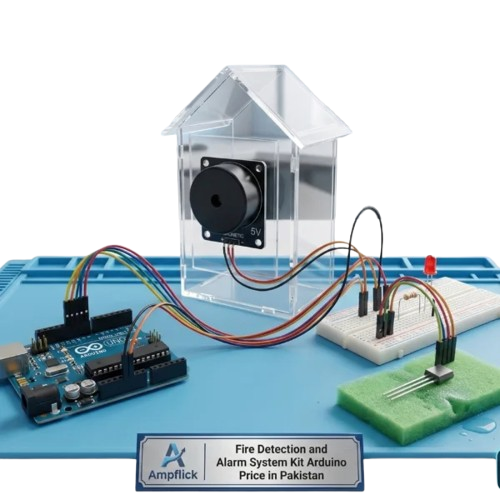

The system utilizes an Arduino Uno to process analog signals from a high-precision TMP36 sensor. This Fire Detection and Alarm System monitors ambient heat levels to identify potential fire hazards. Furthermore, the TMP36 sensor provides a linear voltage output proportional to the Celsius temperature. The kit incorporates a 5V piezo buzzer for high-decibel audible warnings. A bright LED serves as a visual indicator during emergency states. Additionally, a 220Ω resistor is included to prevent the LED from drawing excessive current. The 400-point breadboard allows for a clean, solderless circuit layout. Therefore, all components maintain stable connectivity for real-time thermal monitoring.

Usage of the Fire Detection and Alarm System

Place the TMP36 sensor on the breadboard to track local temperature fluctuations. Connect the buzzer and LED to digital pins for immediate alerts.

This diagram shows all kit components connected to simulate working.

Advantages and Disadvantages of the Fire Detection and Alarm System

This kit offers a reliable way to learn about analog-to-digital conversion and safety automation. It provides both visual and audible feedback to ensure high awareness of thermal changes. However, the TMP36 sensor is designed for temperature tracking rather than detecting open flames directly. Additionally, the system is highly modular for adding smoke sensors or Wi-Fi modules later. Therefore, it serves as a perfect foundation for more complex home security projects. Conversely, the analog sensor may experience signal noise if the jumper wires are too long. This Fire Detection and Alarm System remains an affordable and effective educational safety tool.

Precautions for the Fire Detection and Alarm System

• Never expose the electronic components directly to an open flame or extreme heat.

• Ensure the TMP36 sensor is oriented correctly to prevent it from overheating.

• Avoid using a power source above 9V to protect the Arduino board logic.

What’s Included in the Package

• Microcontroller: 1 x Arduino Uno R3.

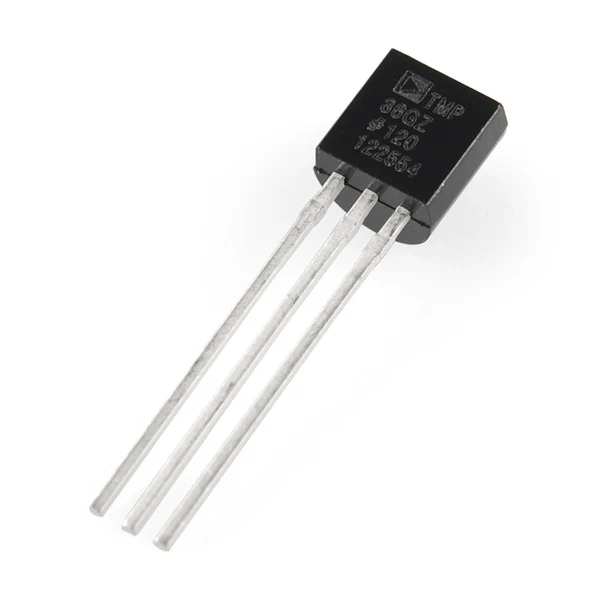

• Sensing: 1 x TMP36 Analog Temperature Sensor.

• Indicators: 1 x 5V Buzzer and 1 x Red LED.

• Hardware: 1 x 220Ω Resistor and 1 x Breadboard.

• Wiring: 1 x Set of Premium Jumper Wires.

Building this safety model helps you master analog input handling and conditional alert logic. You can easily adjust the temperature threshold within the provided source code. Every component is selected for compatibility to ensure a successful building experience. This kit provides a rewarding hands-on introduction to modern emergency response technology. Enhance your technical skills today with this complete and functional fire safety package.

AND PLEASE NOTE THAT ALL COMPONENTS ARE UN-ASSEMBELED. You have to assemble the kit your self.



DRIVE LINK FOR .ino FILE AND CIRCUIT DIAGRAM: Click Here

Tutorial on how to use this: Click Here
