Description

Technical Specifications

The system utilizes an Arduino Uno to process data from a highly sensitive moisture sensor. This Automatic Rain detection window system features an SG90 micro servo motor for mechanical window movement. The moisture sensor detects water droplets through conductivity changes across its sensing traces. Furthermore, a 220Ω resistor is included to protect the status LED from overcurrent damage. The kit provides a solderless breadboard for organized component placement and rapid prototyping. Therefore, all parts maintain stable electrical connectivity for real-time weather monitoring. Additionally, the servo motor supports a 180-degree rotation to simulate window opening and closing.

Usage of the Automatic Rain detection window system

Place the moisture sensor outside to detect the first signs of rainfall. Connect the servo motor to a digital pin to trigger the mechanical window response.

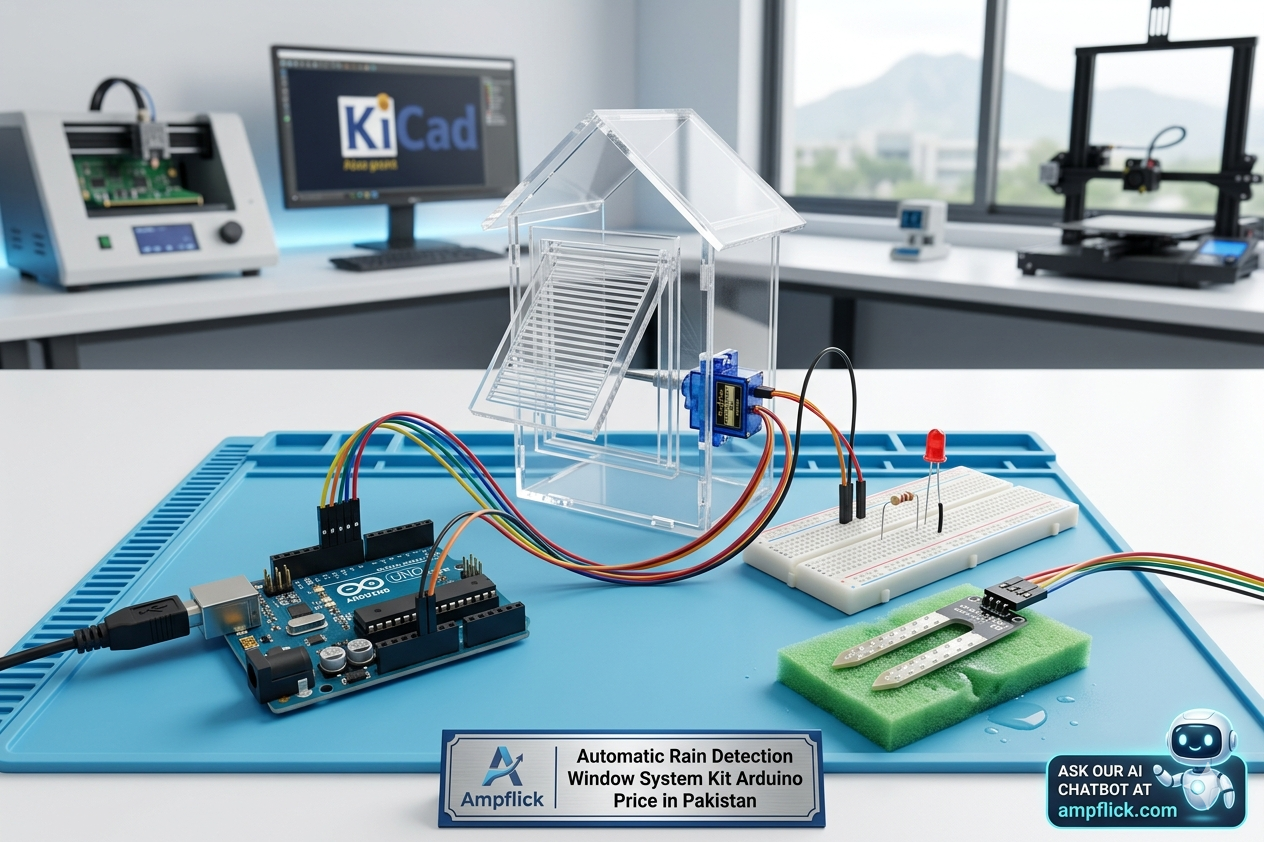

This diagram shows all kit components connected to simulate working.

Advantages and Disadvantages of the Automatic Rain detection window system

This kit offers an excellent way to learn about automation and weather-responsive electronics. It effectively protects interiors from rain damage through fast mechanical actuation. However, the moisture sensor may require regular cleaning to prevent false triggers from residual humidity. Additionally, the micro servo motor is designed for lightweight models rather than full-sized windows. The system is highly modular and allows for easy future sensor upgrades. Conversely, high salt content in rainwater might accelerate sensor corrosion over time. Therefore, this Automatic Rain detection window system remains a top-tier educational resource for smart home technology.

Precautions for the Automatic Rain detection window system

• Never force the servo motor arm manually as this will strip the internal gears.

• Keep the Arduino board and breadboard in a dry enclosure to prevent water damage.

• Ensure the moisture sensor is angled slightly to allow excess water to run off.

What’s Included in the Package

• Microcontroller: 1 x Arduino Uno R3.

• Sensing: 1 x Soil Moisture/Rain Sensor Module.

• Actuation: 1 x SG90 Micro Servo Motor.

• Indicator: 1 x 5mm LED and 1 x 220Ω Resistor.

• Hardware: 1 x Breadboard and Jumper Wire Set.

Building this system helps you master analog sensing and precise servo motor control. You can easily adjust the rain sensitivity threshold within the provided source code. Every component is selected for compatibility to ensure a successful building experience. This kit provides a rewarding hands-on introduction to home automation and robotics. Enhance your technical skills today with this complete and functional weather protection package

AND PLEASE NOTE THAT ALL COMPONENTS ARE UN-ASSEMBELED. You have to assemble the kit your self.

DRIVE LINK FOR .ino FILE AND CIRCUIT DIAGRAM: Click Here

Tutorial on how to use this: Click Here
