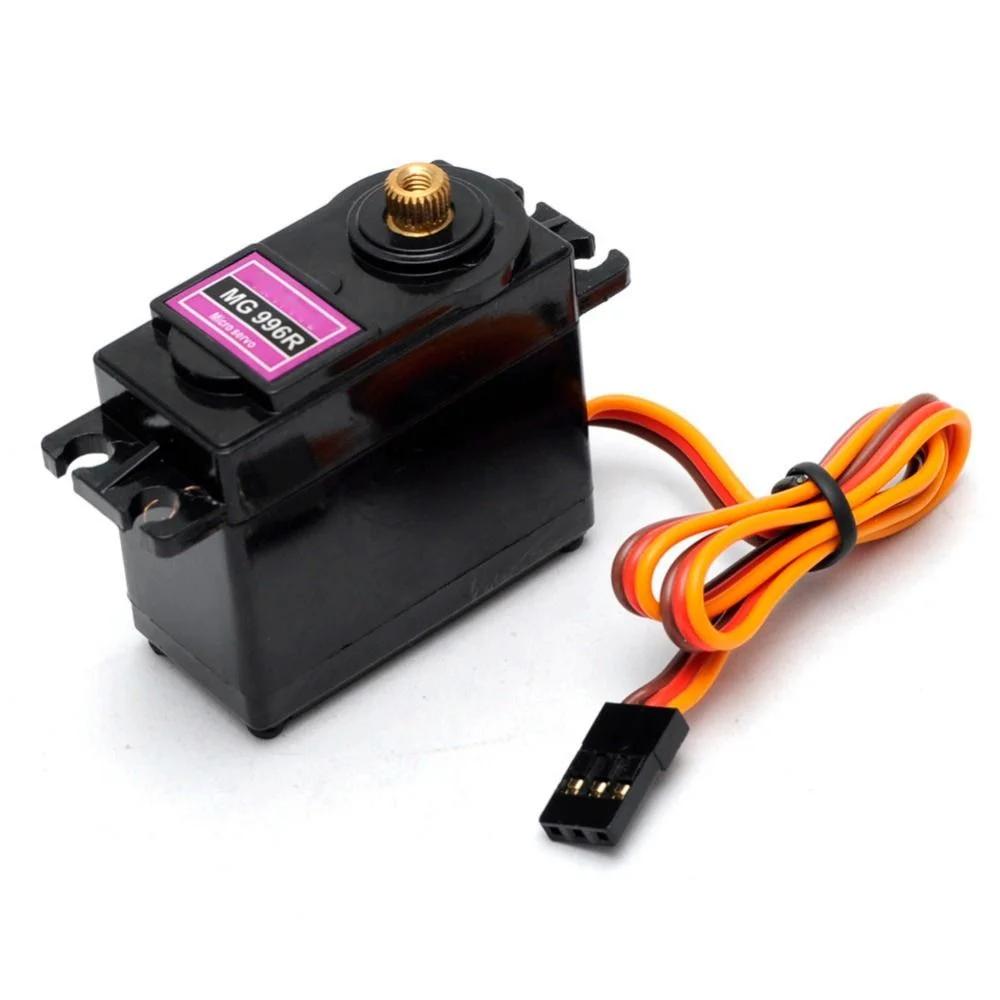

MG996R Metal Gear Tower Pro Servo Motor 360 Degree Price in Pakistan | AmpFlick

Description

Technical Specifications

• Motor Type: High-torque continuous rotation MG996R Metal Gear Tower Pro Servo Motor 360 Degree.

• Gear Material: Heavy-duty internal metal gears for maximum durability.

• Stall Torque: 9.4 kg-cm at 4.8V and 11 kg-cm at 6V.

• Operating Speed: 0.19 sec/60° (4.8V) or 0.15 sec/60° (6V).

• Voltage Input: Range between 4.8V and 7.2V DC.

• Rotation: 360-degree continuous movement with PWM speed control.

• Dead Band Width: 5 microseconds for precise signal response.

Usage and Implementation

• First, connect the brown wire to ground and red to positive.

• Next, attach the orange signal wire to a PWM-capable pin.

• Then, calibrate the pulse width for stationary, clockwise, and counter-clockwise states.

• Afterward, utilize this motor for wheel propulsion.

• Consequently, varying the pulse width adjusts the rotation speed of the shaft.

• Finally, secure the heavy-duty horns to handle high-torque mechanical loads.

Advantages and Disadvantages of MG996R Metal Gear Tower Pro Servo Motor 360 Degree

• Pros: Metal gears prevent stripping under high-pressure industrial or robotic loads.

• Furthermore, continuous rotation eliminates the need for external DC motor drivers.

• Cons: High current draw can cause voltage drops on standard microcontroller pins.

• Additionally, it lacks absolute position feedback due to the 360-degree modification.

Precautions and What to Avoid

• Warning: Never force the shaft to turn manually while the power is active.

• Avoid powering the servo directly from an Arduino 5V pin under load.

• Do not exceed 7.2V to prevent burning the internal digital controller.

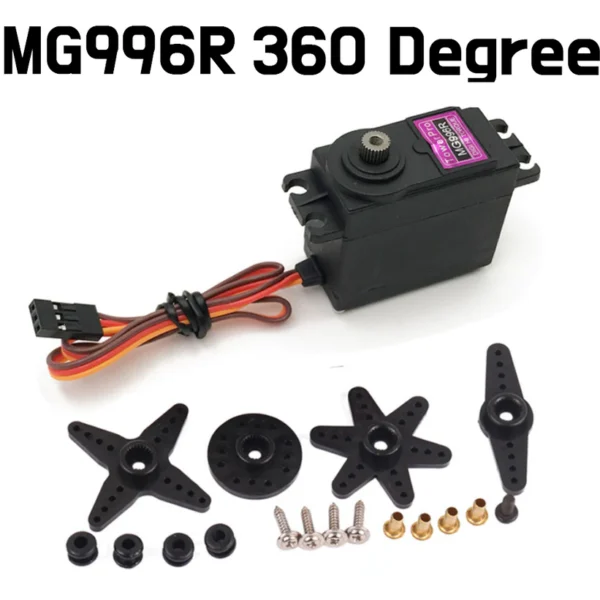

What is Included in the Package

• 1x MG996R Motor.

• 1x Set of high-strength nylon servo horns and arms.

• 1x Mounting screw kit with rubber grommets and brass eyelets.
