Description

LM317T Adjustable Voltage Regulator: Precision Variable Power Control

Technical Specifications of LM317T Adjustable Voltage Regulator

• Output Voltage Range: Adjustable from 1.25V to 37V DC for high versatility.

• Current Capacity: Delivers up to 1.5A continuous output current with proper cooling.

• Input-Output Difference: Requires a minimum 3V differential for stable regulation.

• Line Regulation: Superior stability rated at typically 0.01% per volt change.

• Thermal Protection: Internal thermal overload protection prevents chip failure during overheating.

• Current Limiting: Features built-in internal short-circuit current limiting for circuit safety.

• Package Type: Housed in a standard TO-220 package for easy heatsink mounting.

• Reference Voltage: Maintains a constant 1.25V internal reference between output and adjust pins.

• Keyphrase Usage: The LM317T Adjustable Voltage Regulator is perfect for precision variable power supplies.

Usage and Voltage Calibration

• First, connect the unregulated DC input voltage to the IN pin.

• Next, place a 240-ohm resistor between the OUT and ADJ terminals.

• Then, connect a 5K potentiometer from the ADJ pin to the ground.

• Afterward, rotate the potentiometer to vary the resistance and set the output.

• Consequently, the feedback loop stabilizes the voltage at your desired level.

• Finally, add decoupling capacitors at the input and output for ripple reduction.

Advantages and Disadvantages of LM317T Adjustable Voltage Regulator

• Pros: Extremely easy to implement with only two external resistors for voltage setting.

• Furthermore, integrated safety features like thermal shutdown make it very robust for beginners.

• Cons: Linear regulation efficiency drops significantly when the input-output voltage gap is large.

• Additionally, the device generates considerable heat at high currents and requires an aluminum heatsink.

Precautions and Thermal Management

• Warning: Never exceed the 40V maximum input limit to avoid internal junction damage.

• Always ensure the heatsink is electrically isolated if it touches other conductive components.

• Avoid operating at 1.5A for extended periods without active or passive heat dissipation.

What is Included in the Package

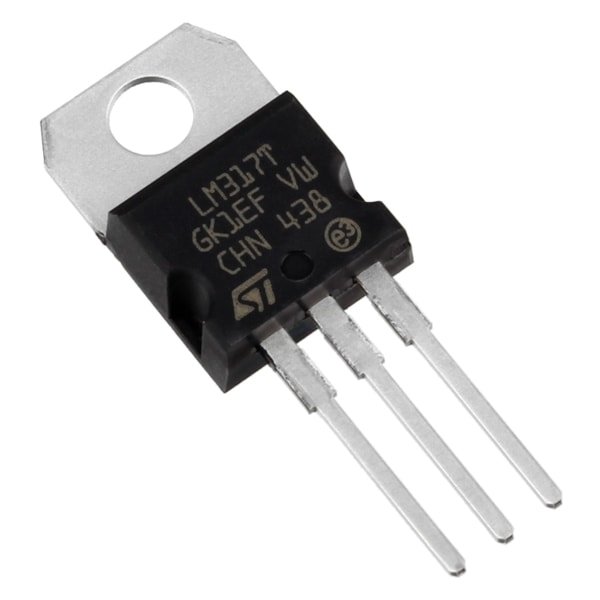

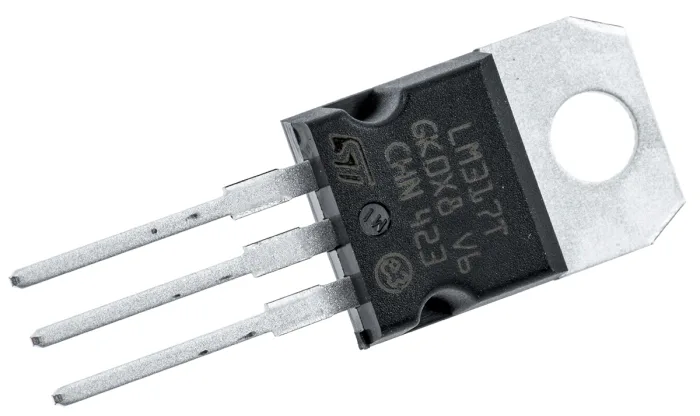

• 1x LM317T Adjustable Voltage Regulator in a professional TO-220 package.

• High-quality silicon construction for consistent performance in various electronic project environments.
