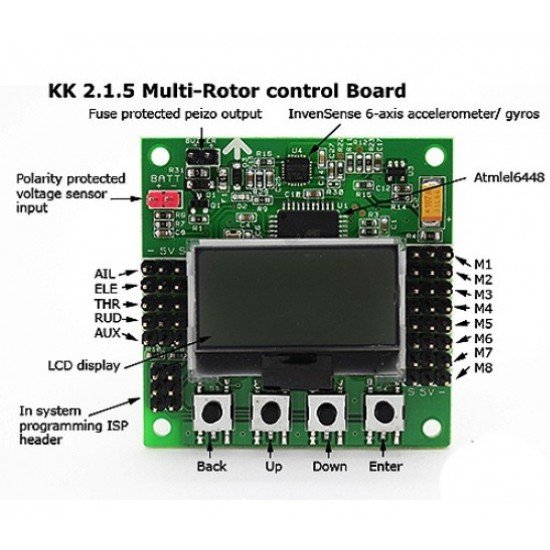

KK 2.1.5 MXK Multi-Rotor Universal Flight Controller Board

Description

Product Description

Technical Specifications of KK 2.1.5 MXK Multi-Rotor

• Model: KK 2.1.5 MXK Multi-Rotor Universal Flight Controller.

• Display: Integrated LCD screen for configuration.

• Sensors: 6-axis Gyro/Accelerometer system for stability.

• Processor: High-performance microcontroller for fast signal processing.

• Input Voltage: Supports standard receiver power (4.8V – 6.0V).

• Firmware: Upgradable to various open-source versions.

• Signal Type: Standard PWM receiver compatibility.

Usage Instructions

• Mount the KK 2.1.5 MXK Multi-Rotor at the exact center of gravity.

• Use vibration-dampening foam or mounts for installation.

• Connect ESCs to the output pins strictly following the layout.

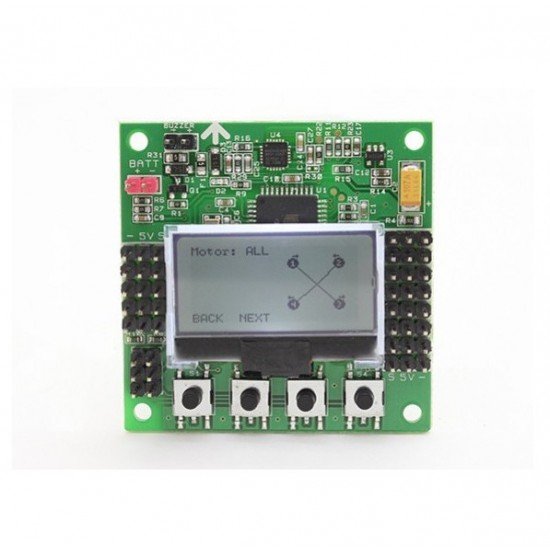

• Navigate the menu using onboard buttons and the LCD.

• Calibrate the sensors on a perfectly level surface.

• Verify motor rotation direction before attaching propellers.

Advantages

• Allows tuning in the field without a laptop.

• The module provides exceptional flight stability.

• Supports Quadcopters, Hexacopters, and Fixed-wing aircraft.

• Simple interface is ideal for beginners and experts.

• Fast processing ensures responsive flight characteristics.

• Compact design fits most DIY drone frames.

What Not to Do

• Do not expose the board to direct water or moisture.

• Avoid mounting the controller on vibrating surfaces without damping.

• Never reverse the polarity of the power input.

• Do not skip the sensor calibration step.

• Do not fly if the LCD shows error messages.

Applications

• Central control for hobbyist Quadcopter builds.

• Stabilization system for Hexacopter camera platforms.

• Flight management for fixed-wing RC airplanes.

• Used in university robotics and engineering projects.

• Ideal for testing custom multi-rotor frame designs.

What’s Included

• 1 x KK 2.1.5 MXK Multi-Rotor Flight Controller Board.

• 1 x Piezo Buzzer for audio alerts.

• Protective anti-static packaging.
