Description

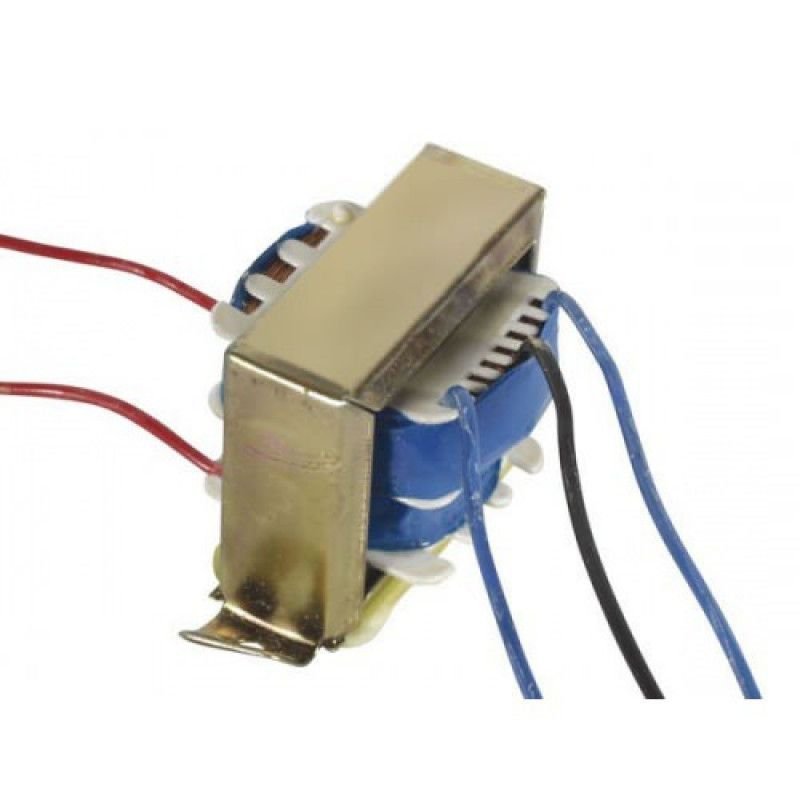

12V 500mA Center Tapped Chassis Mount Transformer

Technical Specifications of 12V 500mA Transformer

• Input Voltage: Rated for 127VAC at a standard frequency of 60Hz.

• Secondary Output: Provides a nominal 12VAC across outer leads at 500mA current.

• Center Tap: Configured as 6V-0-6V for symmetrical dual-rail power applications.

• Core Design: High-efficiency laminated iron core minimizes magnetic flux leakage.

• Mounting Type: Durable chassis mount base featuring 2-1/8 inch center-to-center holes.

• Wiring: Equipped with 5-inch insulated wire leads for flexible circuit connectivity.

• Dimensions: Compact 2-1/2″ x 3/4″ base footprint for easy enclosure integration.

• Application: This 12V 500mA Transformer is ideal for small analog signal circuits.

Power Integration and Usage

• First, secure the transformer to the chassis using the oblong mounting holes.

• Next, connect the primary leads to your protected AC mains input source.

• Then, utilize the 6V-0-6V leads for creating dual-polarity DC power supplies.

• Afterward, attach a bridge rectifier to convert the AC output to direct current.

• Consequently, the 12V 500mA Transformer provides stable power for pre-amplifiers and sensors.

• Finally, verify the load requirements do not exceed the 500mA continuous rating.

Advantages and Disadvantages of 12V 500mA Transformer

• Pros: Center-tap design allows for versatile 6V or 12V output configurations.

• Furthermore, the rugged chassis-mount base provides excellent mechanical stability during operation.

• Cons: Linear transformers are significantly heavier than modern switching power modules.

• Additionally, the 500mA current limit restricts use in high-torque motor applications.

Precautions and High-Voltage Safety

• Warning: Ensure the primary AC connections are fully insulated to prevent shocks.

• Avoid mounting the transformer near heat-sensitive components due to natural thermal emission.

• Never short-circuit the secondary leads as this will cause permanent internal coil damage.

What is Included in the Package

• 1x 12V 500mA Transformer with integrated chassis mount base.

• Pre-stripped 5-inch color-coded wire leads for quick and easy electrical installation.
