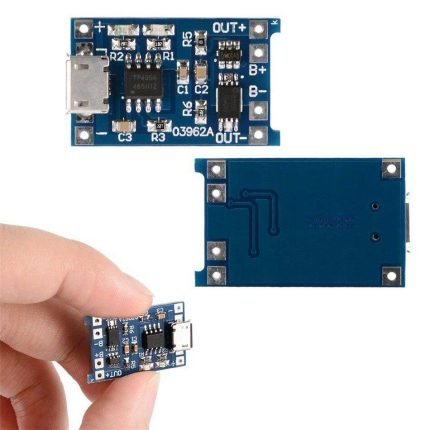

TP4056 C Type USB Port 1A 18650 Lithium Battery Charging Board Charger Module Price in Pakistan

Description

Input voltage: 5V
Load cut-off voltage: 4.2V ± 1{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428}
Maximum charging current: 1000mA
Excessive battery discharge protection voltage: 2.5V
Battery overcurrent protection current: 3A
Panel size: 17.16 mm x 26.17 mm
Charge precision: 1.5{7e82c6d62784066d1b113f595afb6e15f0ca3fec289cddd29e600df910d44428}.
Led indicator: red is charging Green is full charged.
Input interface: Type-C
Work temperature- -10° to +85°.
Reverse polarity protection: No
Size: 25X19X10mm.
works with all types of lipo & lithium batteries like 18650
Connect Battery with B+ & B-
Connect Battery load OUT+ & OUT – (this is uninterrupted power supply
