TCRT5000 IR Sensor Module Line Tracking Line Following

Description

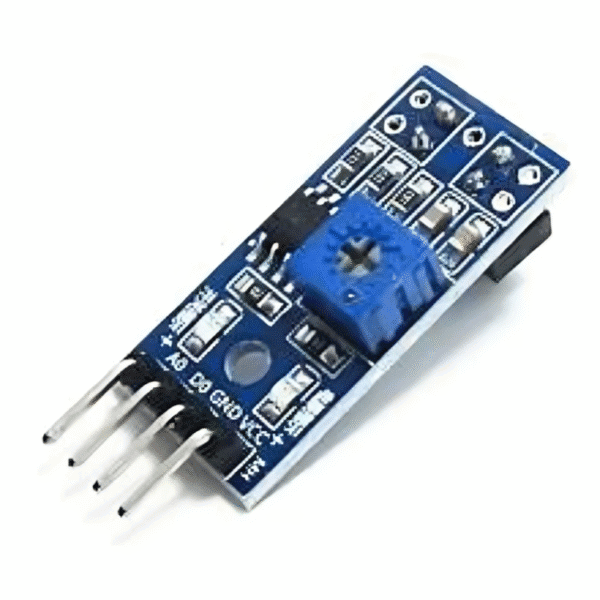

TCRT5000 Infrared Sensor Module
Line Tracking and Obstacle Detection Module

The TCRT5000 IR sensor module is a versatile and efficient solution for applications such as line tracking, obstacle detection, and watt-hour meter pulse data sampling. Its strong drive ability, clear signal, and adjustable sensitivity make it an ideal choice for robotics and automation projects.

Key Features

• High-Performance Sensor: Equipped with the TCRT5000 infrared reflection sensor for accurate detection.
• Adjustable Sensitivity: Precision multi-turn potentiometer for fine-tuning detection.
• Strong Signal Output: Comparator output ensures a clean signal with strong driving capability (>15mA).
• Wide Voltage Support: Operates on 3.3V–5V for compatibility with various systems.
• Compact Design: Includes fixed bolt holes for easy installation.

Specifications

• Detection Distance: 1mm to 8mm (focus distance: 2.5mm).
• Output Type: Digital switching output (0 and 1).
• Comparator Used: LM393.
• PCB Dimensions: 3.2cm x 1.4cm (1.26″ x 0.55″).
• Applications:
  • Line tracking and black/white detection.
  • Obstacle detection.
  • Paper detection in fax machines or shredders.
  • Watt-hour meter pulse data sampling.

Working Principle

The module emits infrared rays continuously through its diode. When the reflected infrared intensity is sufficient, the phototransistor is activated, producing a high output signal. Without sufficient reflection, the output remains low. The analog output (AO) represents the voltage difference, while the digital output (DO) provides a binary signal for easy interfacing.

Package Includes

• 1 x TCRT5000 Infrared Reflection Sensor Module

Perfect for DIY robotics, automation, and various detection applications!
