Description

Technical Specifications of LM358 IC Low Power Dual OPAMP Operational Amplifier

• Architecture: Integrated with two independent Op-Amps in a single 8-pin package.

• Supply Range: Wide input from 3V to 32V for single supply configurations.

• Dual Supply: Operates efficiently between ±1.5V to ±16V for balanced circuits.

• Current Draw: Extremely low supply current at only 700µA for energy efficiency.

• Bandwidth: 1.1MHz unity gain frequency for versatile signal processing tasks.

• Protection: Features short-circuit protected outputs to prevent hardware failure.

• Voltage Gain: High DC voltage gain reaching up to 100dB internally.

Usage and Circuit Integration

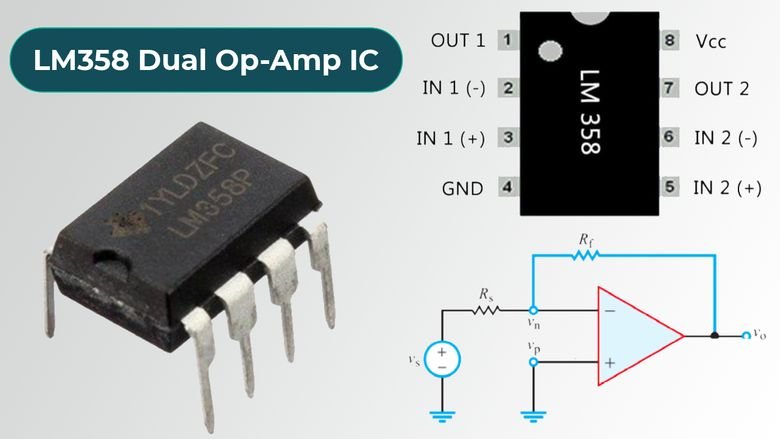

• First, identify the notch on the IC to locate Pin 1 correctly.

• Next, connect the VCC and Ground pins to your regulated power source.

• Then, apply input signals to the inverting or non-inverting terminals for amplification.

• Use this LM358 IC Low Power Dual OPAMP Operational Amplifier as a high-gain comparator.

• Furthermore, integrate external resistors to define the specific voltage gain of the circuit.

• Finally, utilize both internal amplifiers simultaneously to handle dual-channel audio or sensor data.

Advantages and Disadvantages

• • Pros: Compatible with all logic forms and operates on a single power rail.

  • Moreover, its low power consumption significantly extends battery life in portable gadgets.

  • Cons: It possesses a limited output swing compared to modern rail-to-rail amplifiers.

  • Additionally, it may exhibit crossover distortion in high-fidelity audio applications.

Precautions and What to Avoid

• Warning: Do not exceed the maximum soldering temperature of 260°C for 10 seconds.

• Avoid applying input voltages that exceed the supply voltage to prevent latch-up.

• Never reverse the power supply polarity as it will destroy the internal silicon.

What is Included in the Package

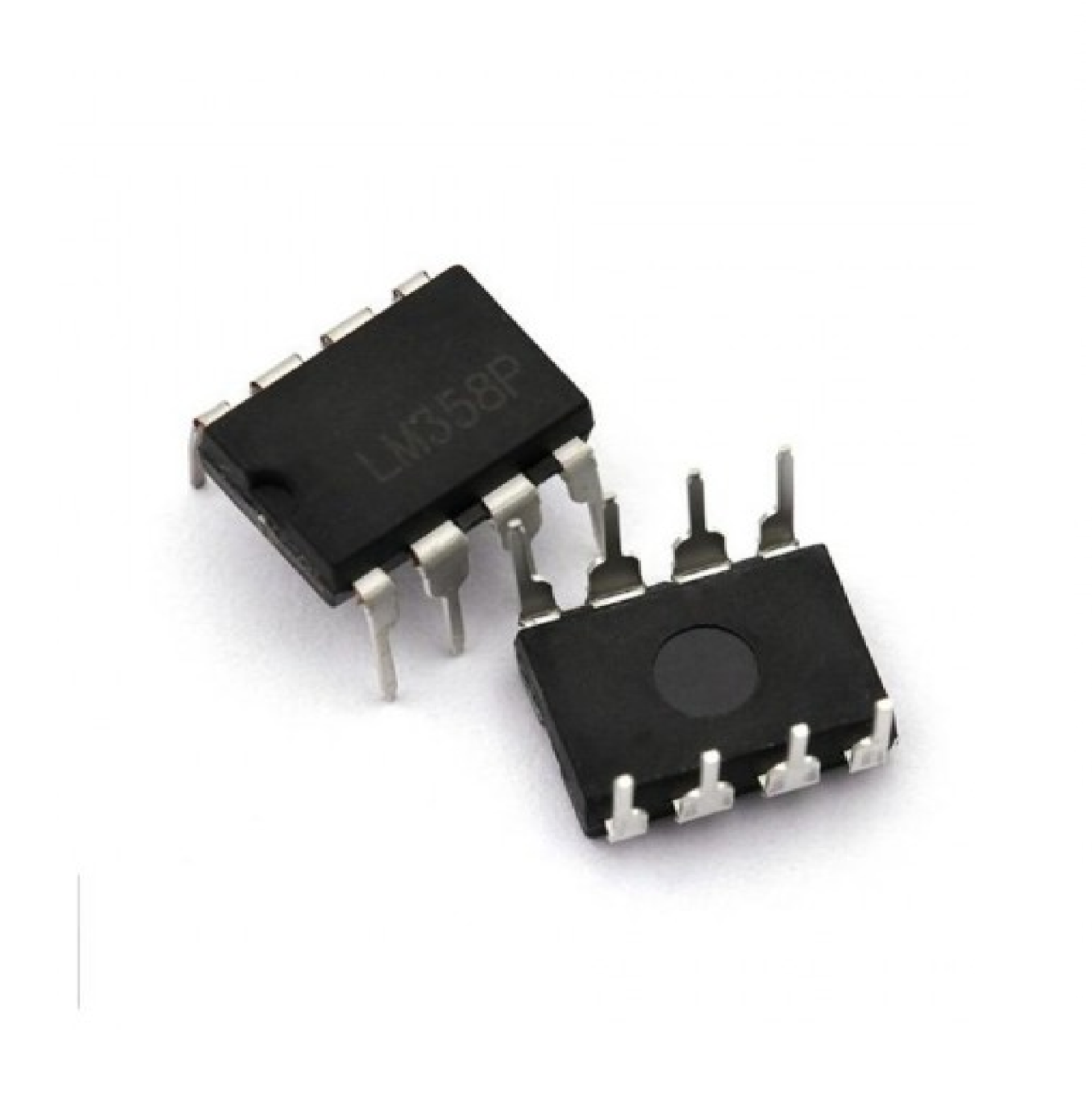

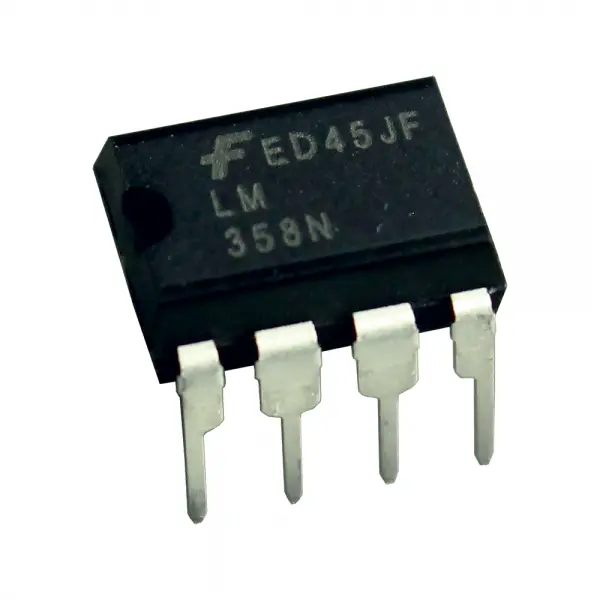

• 1x LM358 IC Low Power Dual OPAMP Operational Amplifier (DIP-8 Package).

• Static-safe protective foam or tube for secure component handling and storage.
