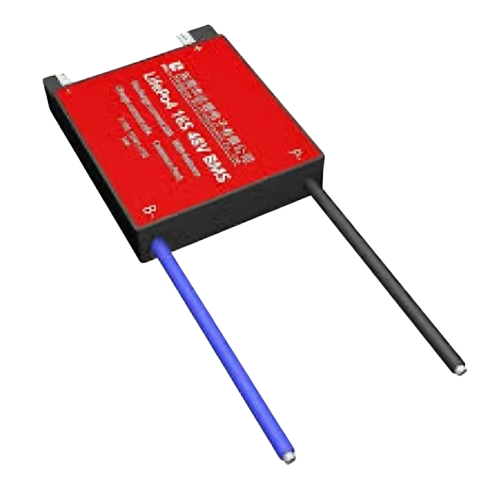

DALY BMS LFP LifePo4 16S 48V 30A BMS Battery Management System for Lifepo4 Battery Pack Balanced Charging Board

Description





Introduction to DALY 48V 30A BMS

The DALY 48V 30A BMS is a smart and compact Battery Management System built specifically for 16S LiFePO4 battery packs. As more energy systems rely on lithium batteries for efficiency and longevity, having reliable management becomes increasingly important. Therefore, this BMS offers both core protection functions and modern IoT connectivity to meet the needs of energy storage, solar, and light electric vehicle applications. It ensures that batteries are safely maintained, properly balanced, and easily monitored in real time, even from remote locations.

Key features

The DALY 48V 30A BMS comes equipped with a variety of essential and advanced features. Firstly, it offers precise cell balancing to maintain voltage uniformity across all 16 cells, helping extend battery lifespan. Additionally, the BMS includes multiple safety layers—such as overcharge, over-discharge, overcurrent, short-circuit, and temperature protection. Moreover, with built-in support for communication protocols like UART, RS485, or CAN, it integrates smoothly into IoT and smart energy systems. As a result, users benefit from improved battery performance, better data visibility, and enhanced safety.

Specifications of DALY 48V 30A BMS

Here are the technical specifications of the DALY 48V 30A BMS:

• Battery Type: LiFePO4 (16S configuration)
• Nominal Voltage: 48V
• Continuous Discharge Current: 30A
• Balance Current: 30–60mA
• Overcharge Detection Voltage: 3.75V ± 0.05V per cell
• Over-discharge Detection Voltage: 2.0V ± 0.05V per cell
• Short Circuit Protection: Yes
• Temperature Protection: Yes (with thermal sensors)
• Communication Interface: UART / RS485 / CAN (model dependent)
• Operating Temperature Range: -20°C to 70°C
• Approximate Size: 150mm x 100mm x 15mm
• Weight: Around 320g

Although compact, this BMS is capable of managing demanding tasks in small- to medium-scale battery systems.

Significance

What makes the 30A BMS significant is its combination of safety, smart communication, and efficient power management. Because it supports real-time monitoring and data logging via IoT platforms, it allows users to track battery status from anywhere. Furthermore, its current rating and protective functions make it ideal for applications such as portable energy systems, solar storage, and small electric vehicles. In comparison to standard analog BMS units, this model offers more precise control and longer-term reliability, thereby enhancing the overall performance of your battery system.

Conclusion of DALY 48V 30A BMS

In conclusion, it offers an intelligent, efficient, and protective solution for managing 16S LiFePO4 battery packs. With features like active cell balancing, multiple safety protections, and IoT communication compatibility, it stands out as a trusted option for modern energy storage applications. Whether you’re setting up a solar system, a mobile power bank, or a smart battery array, this BMS ensures stability, control, and long-term safety.
