Automatic Water Level Controller Kit Price in Pakistan | AmpFlick

Description

Technical Specifications

This project utilizes an Arduino Uno to monitor fluid heights within a tank. The Automatic water level controller uses three probes to detect low, medium, and high thresholds. Three 10kΩ resistors function as pull-down components to ensure stable digital readings. Furthermore, a 5V relay module provides electrical isolation for the high-current DC motor. This motor serves as the pump to refill the reservoir automatically. The breadboard facilitates a solderless environment for connecting all sensing probes. Additionally, the system operates effectively on a standard 5V to 9V DC power input.

Usage of the Automatic water level controller

Secure the three probes at different heights inside your water container. Connect the relay to the Arduino to toggle the pump based on probe feedback.

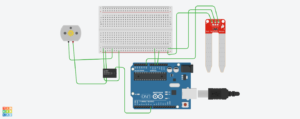

This diagram shows all kit components connected to simulate working.

Advantages and Disadvantages of the Automatic water level controller

This kit offers a robust solution for preventing tank overflows in residential settings. It provides real-time monitoring through a simple yet effective conductive sensing method. However, the probes may face oxidation over time due to constant water contact. Additionally, the DC pump is designed for small-scale demonstrations rather than industrial use. The system is highly customizable for adding alarm buzzers or LCD displays. Therefore, it remains an excellent choice for student projects and home prototypes.

Precautions for the Automatic water level controller

• Never connect the DC motor directly to Arduino pins without the relay.

• Ensure all wire connections are waterproofed to prevent short circuits in the tank.

• Use a separate power source for the pump if it exceeds 5V requirements.

What’s Included in the Package

• Microcontroller: 1 x Arduino Uno R3.

• Prototyping: 1 x Solderless Breadboard.

• Sensing: 3 x Water Level Probes and 3 x 10kΩ Resistors.

• Switching: 1 x 5V Single Channel Relay Module.

• Pump: 1 x Small DC Submersible Motor.

• Wiring: 1 x Set of Multi-colored Jumper Wires.

The Automatic water level controller is a complete hardware package for liquid management. It teaches users about relay isolation and sensor logic. You can easily adjust the code to change pump activation timings. Every component is selected for compatibility to ensure a smooth building process. Order this kit today to automate your water storage system efficiently.

AND PLEASE NOTE THAT ALL COMPONENTS ARE UN-ASSEMBELED. You have to assemble the kit your self.



DRIVE LINK FOR .ino FILE AND CIRCUIT DIAGRAM: Click Here

Tutorial on how to use this: Click Here

Order more Learning Kits from AmpFlick: Click Here
