Arduino Obstacle Avoiding Car 4 Wheel Kit Price in Pakistan | AmpFlick

₨8,600.00

Delivered All over Pakistan 🇵🇰

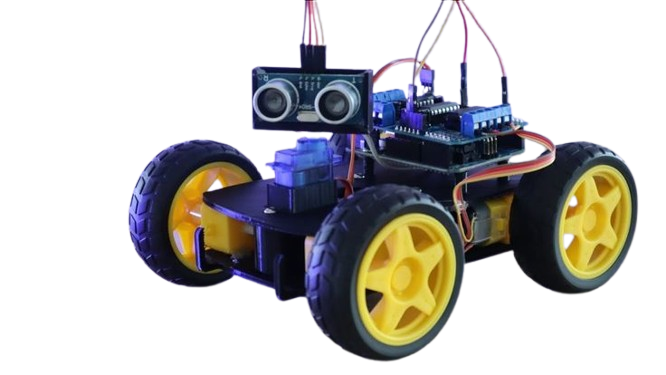

The Arduino Obstacle Avoiding Car 4 Wheel Kit is a robust autonomous platform. It features an Arduino Uno paired with a high-current L293D driver. The system utilizes an HC-SR04 sensor mounted on a servo for active scanning. Consequently, the car can calculate distances in multiple directions before moving. It operates on 7.4V DC, driving four independent motors for maximum power. The modular design supports easy sensor upgrades and Bluetooth integration. This kit is perfect for mastering complex robotic logic and 4WD mechanics

Add to wishlist loading

Description

Technical Specifications of Arduino Obstacle Avoiding Car 4 Wheel Kit

  • Controller: Arduino Uno R3 compatible microcontroller(best for Arduino Obstacle Avoiding Car 4 Wheel Kit).

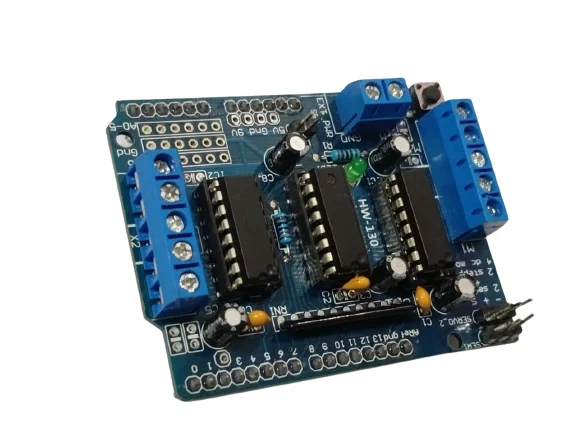

  • Motor Driver: L293D Dual H-Bridge Motor Driver Shield.

  • Scanning Unit: SG90 Micro Servo for 180-degree rotation.

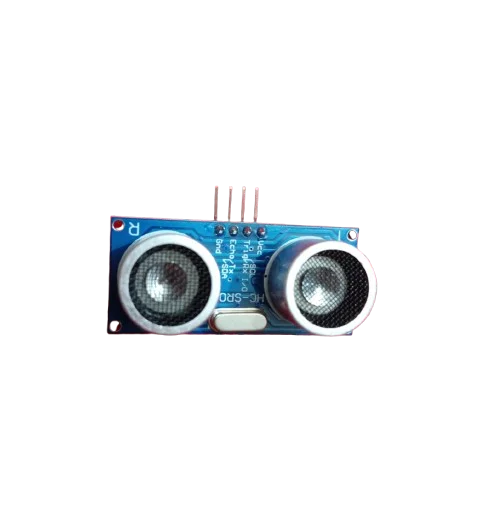

  • Distance Sensor: HC-SR04 Ultrasonic module for depth perception.

  • Drive System: Four high-torque geared DC motors with matching wheels.

  • Chassis: Dual-layer high-durability acrylic mounting plates.

  • Energy Source: Two 18650 rechargeable Li-ion cells.

Usage and Assembly Steps

  • First, attach the four geared motors to the bottom chassis.

  • Next, mount the micro servo at the front of the frame.

  • Then, secure the ultrasonic sensor onto the servo horn.

  • Afterward, connect the motor leads to the L293D shield terminals.

  • Subsequently, upload the obstacle avoidance sketch via the USB port.

  • Finally, the car scans surroundings and navigates around objects automatically.

Advantages and Disadvantages

  • Pros: The 4WD system provides excellent traction on uneven floors.

  • Furthermore, the ultrasonic scanning allows for intelligent pathfinding.

  • Cons: Higher current draw compared to two-wheel drive variants.

  • Additionally, the heavy chassis requires fully charged batteries for speed.

Precautions and What to Avoid

  • Warning: Do not force the servo motor to rotate manually.

  • Avoid crossing the positive and negative leads of the batteries.

  • Never run the motors without the L293D shield properly seated.

What is Included in the Package

  • 1x Arduino Uno and 1x L293D Driver Shield.

  • 1x HC-SR04 Ultrasonic Sensor and 1x Micro Servo.

  • 4x TT Geared Motors and 4x Grip Wheels.

  • 1x 18650 lithium-ion battery pack 12V 2000mAh.

  • 8x M3 Socket Head Screws and assembly hardware.

AND PLEASE NOTE THAT ALL COMPONENTS ARE UN-ASSEMBELED. You have to assemble the kit your self.



Tutorial on how to build this: Click Here
