Description

Master Sequential Logic with the Arduino Multi LED Control Kit

This professional training set allows users to explore complex digital outputs through hardware and software integration. Therefore, the Arduino Multi LED Control Kit is an ideal choice for learning array-based programming and logic timing. The system utilizes an Arduino UNO to manage multiple high-brightness LEDs simultaneously. Additionally, the kit provides three 220-ohm resistors to ensure current stability across all active channels. However, the versatility of the breadboard allows you to experiment with various circuit configurations easily.

Technical Specifications for Arduino Multi LED Control Kit

• Microcontroller: Arduino UNO R3 compatible board with ATmega328P processor.

• Prototyping: 400-point solderless breadboard with integrated power rails.

• Current Protection: Three 220 Ohm resistors with 5% tolerance ratings.

• Visual Outputs: Three 5mm LEDs (Red, Green, Yellow) for clear feedback.

• Voltage Input: Supports 5V DC via USB or external power jack.

Hardware Configuration and Usage

• First, seat the Arduino firmly and bridge the breadboard power rails.

• Insert the three LEDs into separate digital output channels.

• Connect each resistor in series with the LED cathode to ground.

• Afterward, upload the sequential blink code to trigger the light patterns.

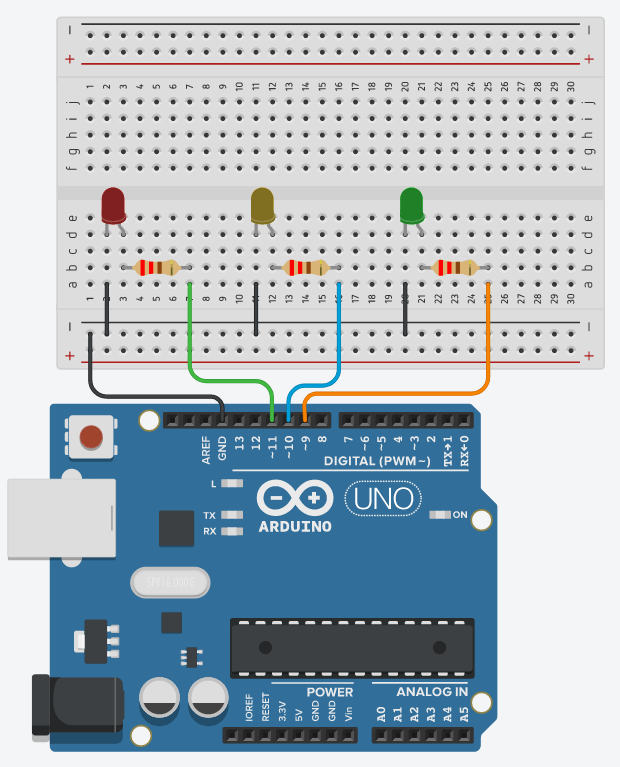

This diagram shows all kit components connected to simulate working.

Advantages and Disadvantages of the Arduino Multi LED Control Kit

• Pros: Offers a clear visual representation of loop functions and delay timing.

• Furthermore, the modular parts are reusable for more advanced robotic or automation projects.

• Cons: Limited to basic digital switching without additional analog input sensors.

Precautions and Safety Guidelines

• Always use the provided resistors to prevent burning out the sensitive LEDs.

• Double-check for short circuits between the closely spaced resistor leads.

What is Included in the Package

• 1x Arduino UNO Compatible Board

• 1x 400-Point Solderless Breadboard

• 3x 220 Ohm Resistors

• 3x 5mm LEDs (Assorted Colors)

AND PLEASE NOTE THAT ALL COMPONENTS ARE UN-ASSEMBELED. You have to assemble the kit your self.



DRIVE LINK FOR .ino FILE AND CIRCUIT DIAGRAM: Click Here

Tutorial on how to use this: Click Here
