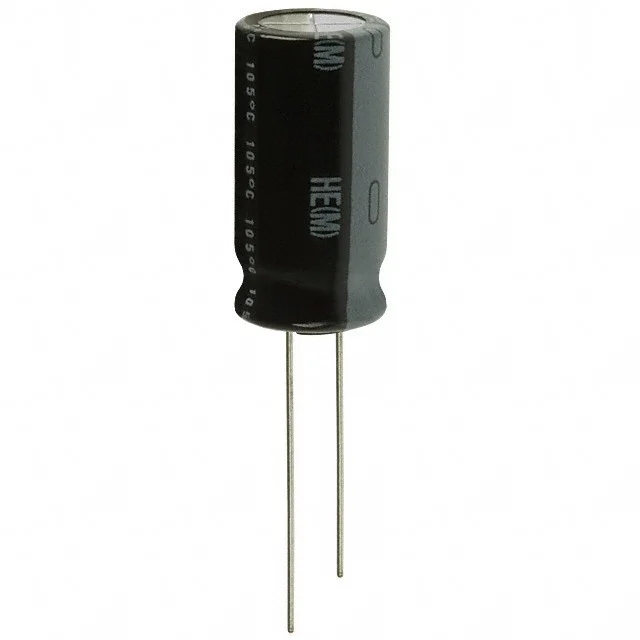

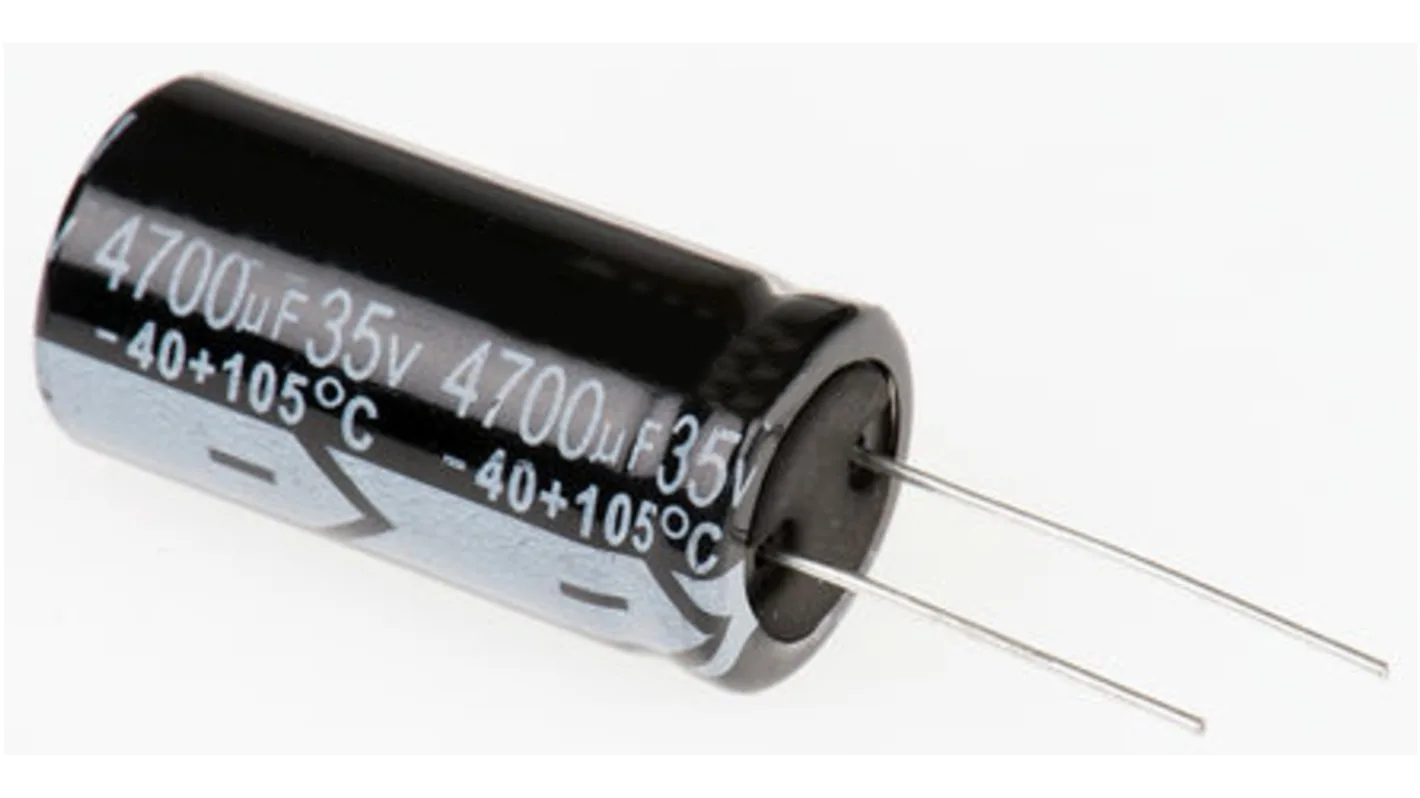

4700µf 35V Electrolytic Capacitor: High-Capacity Power Smoothing

Technical Specifications of 4700µf 35V Electrolytic Capacitor

• Nominal Capacitance: 4700µf for massive energy storage and ripple filtration.

• Voltage Rating: Maximum working voltage of 35V DC for versatile power applications.

• Tolerance: Standard ±20% capacitance tolerance for reliable circuit performance.

• Temperature Range: Operates effectively from -40°C to +85°C in various environments.

• Termination Style: Radial lead design for convenient through-hole PCB mounting.

• Leakage Current: Low leakage characteristics to ensure efficient energy retention.

• Safety Feature: Integrated top safety vent to prevent pressure buildup during failure.

• Compliance: Fully RoHS compliant materials used in this 4700µf 35V Electrolytic Capacitor.

Usage and Circuit Integration

• First, identify the negative lead marked by the white stripe on the case.

• Next, insert the leads into the filtered section of your power supply.

• Then, solder the terminals securely to your PCB or prototype board.

• Afterward, utilize the high capacitance to stabilize fluctuating voltage rails.

• Consequently, this capacitor excels in audio amplifier smoothing and motor decoupling.

• Finally, verify that the circuit voltage never exceeds the 35V threshold.

Advantages and Disadvantages of 4700µf 35V Electrolytic Capacitor

• Pros: Offers excellent volumetric efficiency with high capacitance in a miniaturized case.

• Furthermore, the low impedance design ensures fast energy delivery during peak loads.

• Cons: Electrolytic fluid can eventually dry out over several years of continuous use.

• Additionally, incorrect polarity installation will result in immediate component destruction.

Precautions and Installation Safety

• Warning: Always observe correct polarity to avoid internal gas expansion and venting.

• Avoid using the capacitor at its maximum voltage limit for extended periods.

• Do not apply AC voltage to this polarized DC electrolytic component.

What is Included in the Package

• 1x 4700µf 35V Electrolytic Capacitor with standard radial leads.

• Protective industrial-grade packaging to prevent lead bending during transit.
