2WD RC Car Chassis Kit: Complete Robotics Foundation

Technical Specifications of 2WD RC Car Chassis Kit

• Chassis Material: High-strength laser-cut plexiglass measuring 220mm by 150mm.

• Motor Performance: Dual biaxial gear motors with a 1:48 reduction ratio.

• Rotational Speed: Delivers 125 RPM at a 3V input without load.

• Operating Voltage: Versatile power range from 3V to 6V DC.

• Wheel Dimensions: Two high-quality 66mm diameter tires for smooth travel.

• Tachometer Support: Includes two black speed encoder disks for precision feedback.

• Directional Control: Integrated front caster wheel for 360-degree maneuverability.

• Mounting Features: Pre-drilled slots for Arduino, sensors, and this 2WD RC Car Chassis Kit.

Assembly and Project Integration

• First, align the dual gear motors with the aluminum fasteners on the chassis.

• Next, attach the 66mm wheels to the motor shafts for reliable traction.

• Then, mount the speed encoder disks to measure velocity or distance.

• Afterward, fix the front caster wheel to ensure stable three-point contact.

• Furthermore, install your preferred microcontroller to automate the driving logic.

• Finally, connect the 4 AA battery box to supply power to the system.

Advantages and Disadvantages of 2WD RC Car Chassis Kit

• Pros: Simple mechanical structure makes it ideal for rapid prototyping and education.

• Moreover, included encoders allow for advanced speed testing and precise distance tracking.

• Cons: The single-level design limits the mounting space for complex dual-controller setups.

• Additionally, plexiglass is rigid but can fracture under extreme high-speed impacts.

Precautions and Installation Safety

• Warning: Do not exceed 6V input to prevent motor winding burnout.

• Avoid over-tightening screws into the acrylic to prevent surface cracking.

• Never run the motors continuously at maximum voltage without a load.

What is Included in the Package

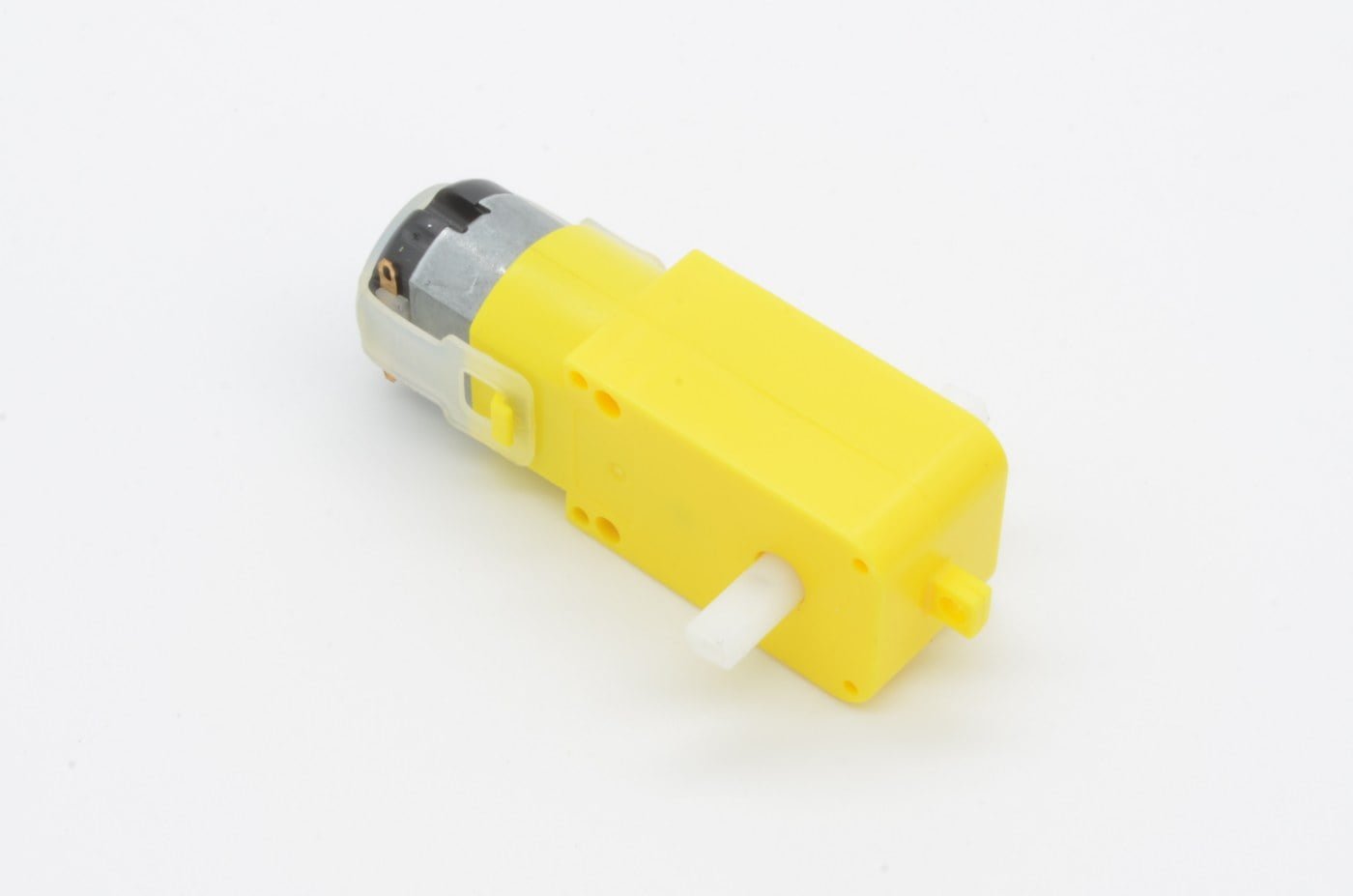

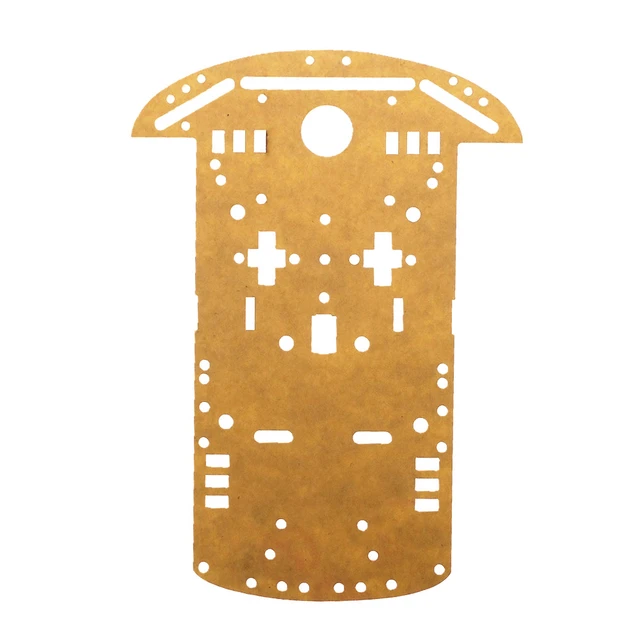

• 1x High-strength plexiglass panel and 2x TT gear motors.

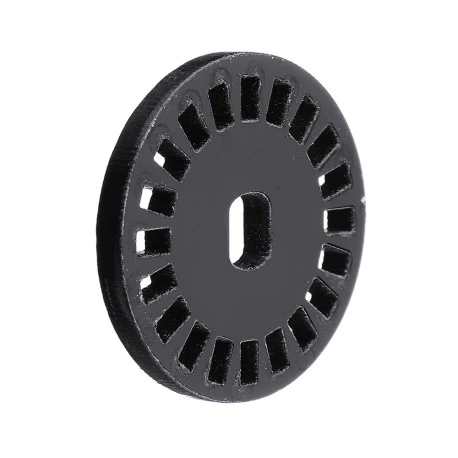

• 2x High-quality tires and 2x Black speed encoder disks.

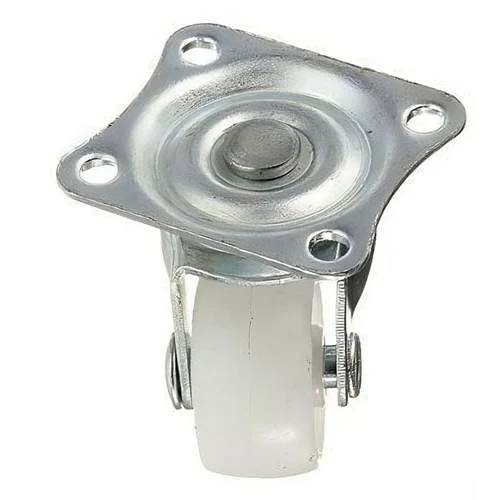

• 1x Universal caster wheel and 1x 4-slot battery case.

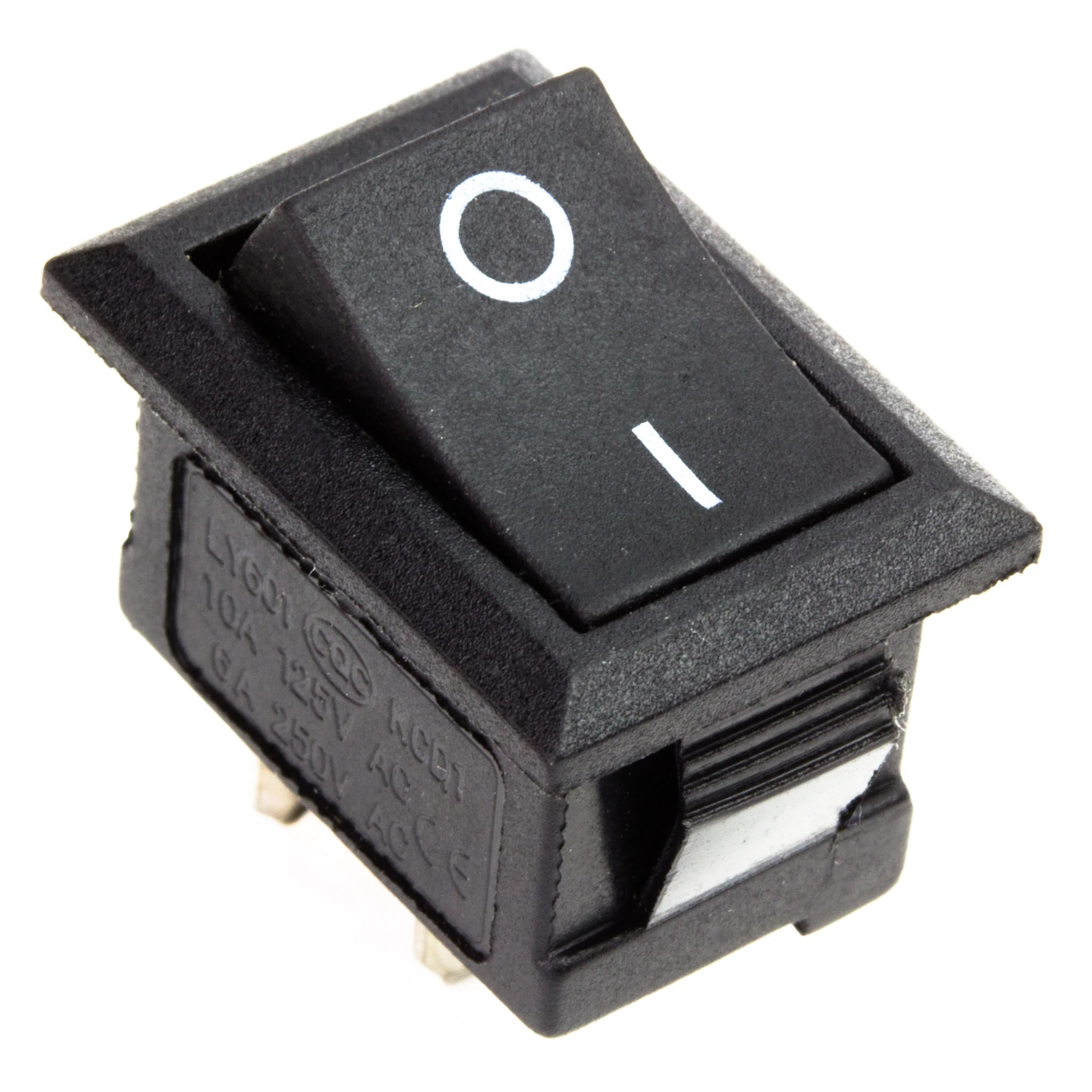

• Full set of screws, nuts, aluminum fasteners, and 1x Switch

AND PLEASE NOTE THAT ALL COMPONENTS ARE UN-ASSEMBELED. You have to assemble the kit your self.



Tutorial on how to assemebele this: Click Here
