Description

2WD Acrylic Chassis for RC Car: Smart Robotic Platform

Technical Specifications of 2WD Acrylic Chassis for RC Car

• Main Material: High-strength, 3mm thick transparent laser-cut acrylic plate.

• Dimensions: Approximately 210mm in length and 150mm in width for compact builds.

• Drive System: Dual rear-wheel drive configuration supported by high-torque geared motors.

• Stability: Includes a low-friction universal omnidirectional castor wheel for the front.

• Wheel Parameters: 65mm diameter rubber tires with high-grip tread patterns.

• Mounting Options: Pre-drilled slots for Arduino, L298N, and various ultrasonic sensors.

• Power Capacity: Dedicated space for 4x AA battery holders or lithium-ion packs.

• Payload: This 2WD Acrylic Chassis for RC Car supports up to 500g of electronics.

Assembly and Robotic Integration

• First, peel off the protective brown paper film from the acrylic surfaces.

• Next, fix the dual gear motors to the chassis using the provided T-brackets.

• Then, snap the rubber tires onto the motor shafts securely.

• Afterward, install the front castor wheel to ensure balanced three-point contact.

• Furthermore, mount your microcontroller and motor driver using M3 spacers.

• Finally, wire the battery pack to the main switch for immediate testing.

Advantages and Disadvantages of 2WD Acrylic Chassis for RC Car

• Pros: The transparent design allows for easy inspection of internal wiring and components.

• Moreover, the lightweight structure significantly improves battery life and overall motor responsiveness.

• Cons: Acrylic material can crack if the robot experiences high-speed collisions with walls.

• Additionally, the limited surface area may require stacking boards for complex sensor arrays.

Precautions and Handling Tips

• Warning: Do not over-tighten the mounting screws to prevent stress fractures in the acrylic.

• Avoid using high-voltage motors that exceed the structural rigidity of the motor brackets.

• Never clean the chassis with alcohol-based solvents as they cause surface clouding.

What is Included in the Package

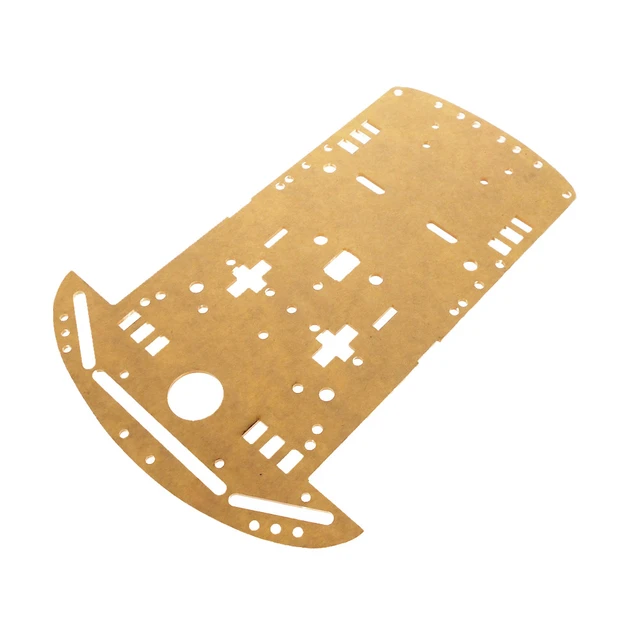

• 1x Precision-cut 2WD Acrylic Chassis for RC Car base plate.

Only one transparent acrylic board will come with the package, no other accessories included
