12V Cabinet Drawer Electric Solenoid Door Lock (54x28x39mm) Price in Pakistan | AmpFlick

Description

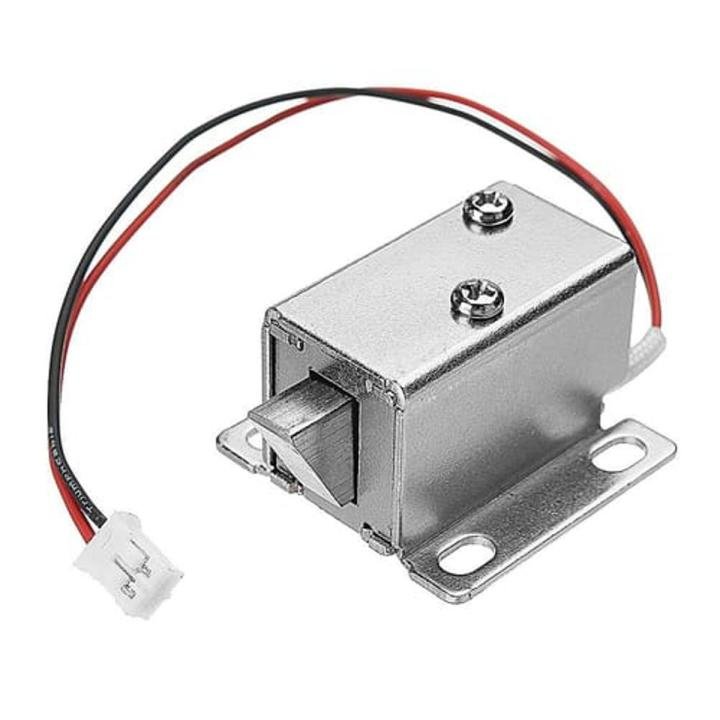

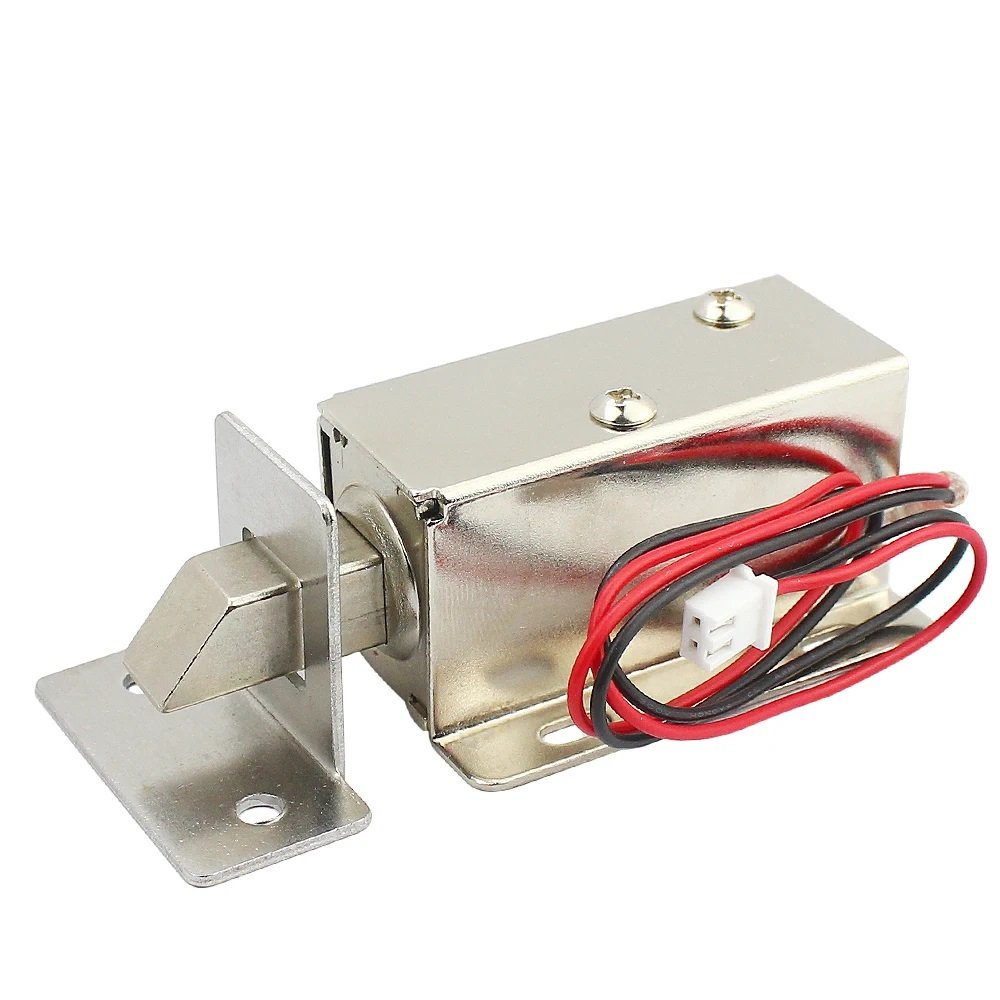

Technical Specifications of 12V Cabinet Drawer Electric Solenoid Door Lock

• Operating Voltage: 12V DC input for optimal solenoid activation for 12V Cabinet Drawer Electric Solenoid Door Lock.

• Current Consumption: Approximately 0.6A to 1.2A during pulse activation.

• Dimensions: Compact 54mm x 28mm x 39mm high-grade steel frame.

• Latch Bolt: Spring-loaded chrome-plated tongue for secure locking.

• Power Type: Fail-secure configuration (locks when power is disconnected).

• Duty Cycle: Designed for intermittent instant power-on bursts.

• Wire Length: Approximately 10cm pre-soldered PVC lead wires.

Usage and Mounting Instructions

• First, align the mounting board with the cabinet or drawer frame.

• Next, secure the lock using standard M3 or M4 screws.

• Then, connect the wires to a 12V DC power supply.

• Use a relay or transistor to trigger the lock via microcontrollers.

• Afterward, verify that the latch retracts smoothly when energized.

• Finally, ensure the strike plate aligns perfectly with the lock tongue.

Advantages and Disadvantages

• Pros: Consumes zero power while in the locked state.

• The anti-theft and shockproof design prevents unauthorized manual tampering.

• Cons: Generates significant heat if energized for more than 10 seconds.

• Furthermore, it requires a separate relay for Arduino or ESP8266 control.

Precautions and What to Avoid

• Warning: Avoid long-duration power-on cycles to prevent coil burnout.

• Do not apply AC voltage to this DC-rated solenoid module.

• Never operate the lock without a flyback diode on the relay.

What is Included in the Package

• 1x 12V Cabinet Drawer Electric Solenoid Door Lock.

• 1x Integrated mounting bracket with pre-drilled holes.

• Two-wire lead for easy electrical termination.

Learn How to use this: Click Here

Order more components from AmpFlick: Click Here
