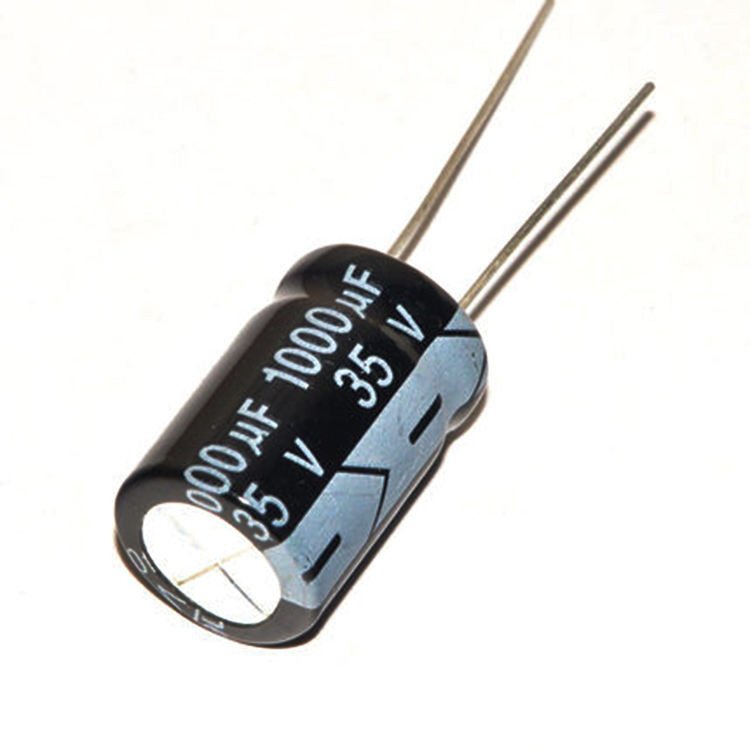

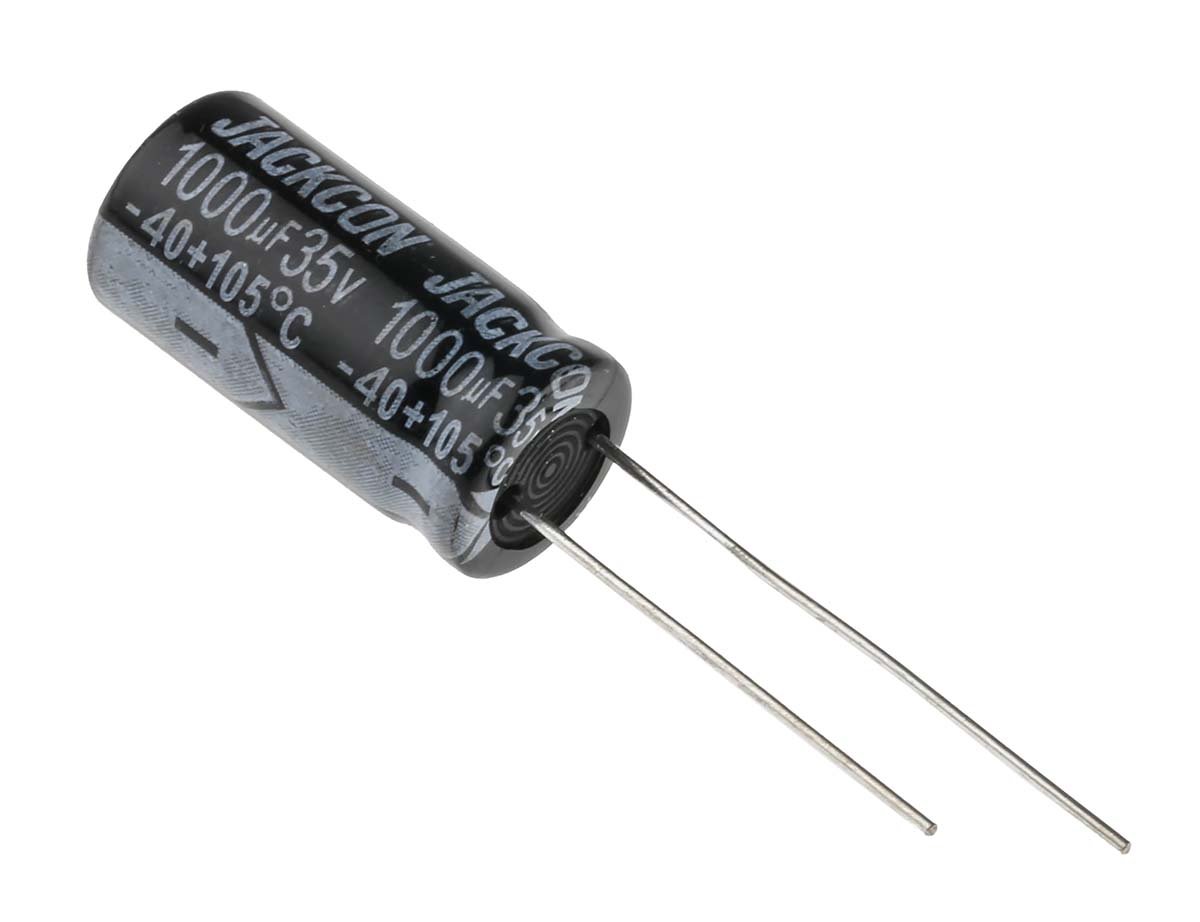

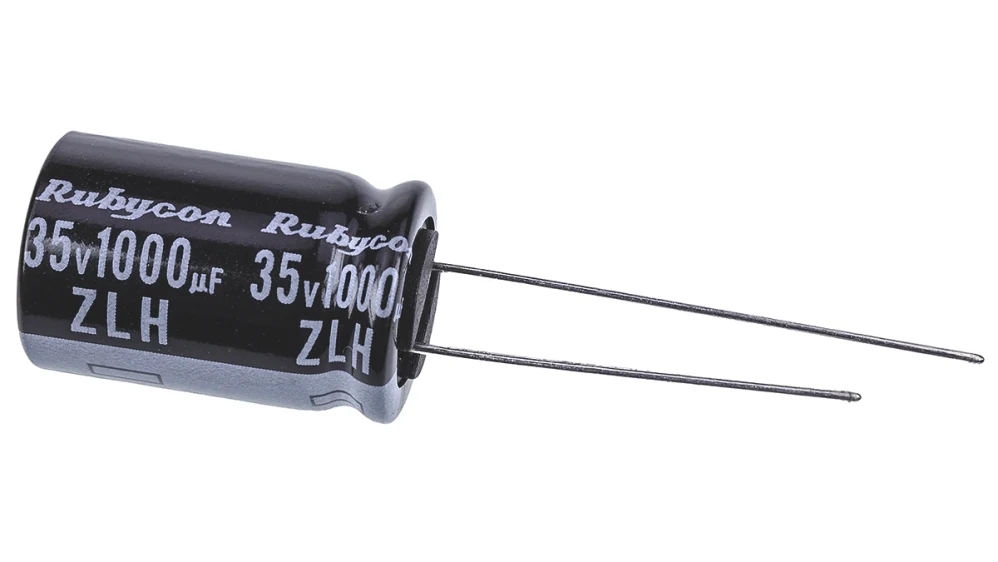

1000µf 35V Electrolytic Capacitor: Essential Power Smoothing Component

Technical Specifications of 1000µf 35V Electrolytic Capacitor

• Capacitance Value: Features a steady 1000µf capacity for reliable energy buffering.

• Voltage Rating: Operates safely at a maximum of 35V DC for varied circuit designs.

• Mounting Style: Through-hole radial lead design ensures easy PCB integration and soldering.

• Polarization: Specifically designed as a polarized aluminum electrolytic component with clear markings.

• Temperature Range: Reliable performance maintained within standard industrial operating temperatures.

• ESR Rating: Low Equivalent Series Resistance for improved efficiency in high-frequency applications.

• Case Size: Compact cylindrical form factor saves valuable space on dense circuit boards.

• Tolerance: Standard ±20% capacitance tolerance provides consistent filtering in this 1000µf 35V Electrolytic Capacitor.

Usage and Power Supply Filtering

• First, identify the negative terminal by looking for the shorter lead or white stripe.

• Next, place the capacitor in parallel with your DC power supply output.

• Then, solder the leads firmly to the copper pads to ensure low-resistance contact.

• Afterward, utilize the component to smooth out AC ripples in rectified DC circuits.

• Consequently, this 1000µf 35V Electrolytic Capacitor prevents voltage drops during sudden load changes.

• Finally, integrate it into audio signal paths for effective DC blocking and decoupling.

Advantages and Disadvantages of 1000µf 35V Electrolytic Capacitor

• Pros: Provides excellent capacitance density at a very affordable price point for DIY projects.

• Furthermore, the long lifespan and low ESR ensure stable long-term operation in power systems.

• Cons: Polarized nature means it will fail if connected in reverse within a circuit.

• Additionally, the liquid electrolyte may degrade over time under extreme heat or high ripple current.

Precautions and Installation Safety

• Warning: Never exceed the 35V DC limit to avoid internal pressure and potential venting.

• Always double-check the polarity band before applying power to prevent a short circuit.

• Avoid mechanical stress on the radial leads during the mounting process to protect internal seals.

What is Included in the Package

• 1x 1000µf 35V Electrolytic Capacitor with tinned radial leads for easy soldering.

• Durable protective packaging to ensure the component arrives without any physical lead damage.
