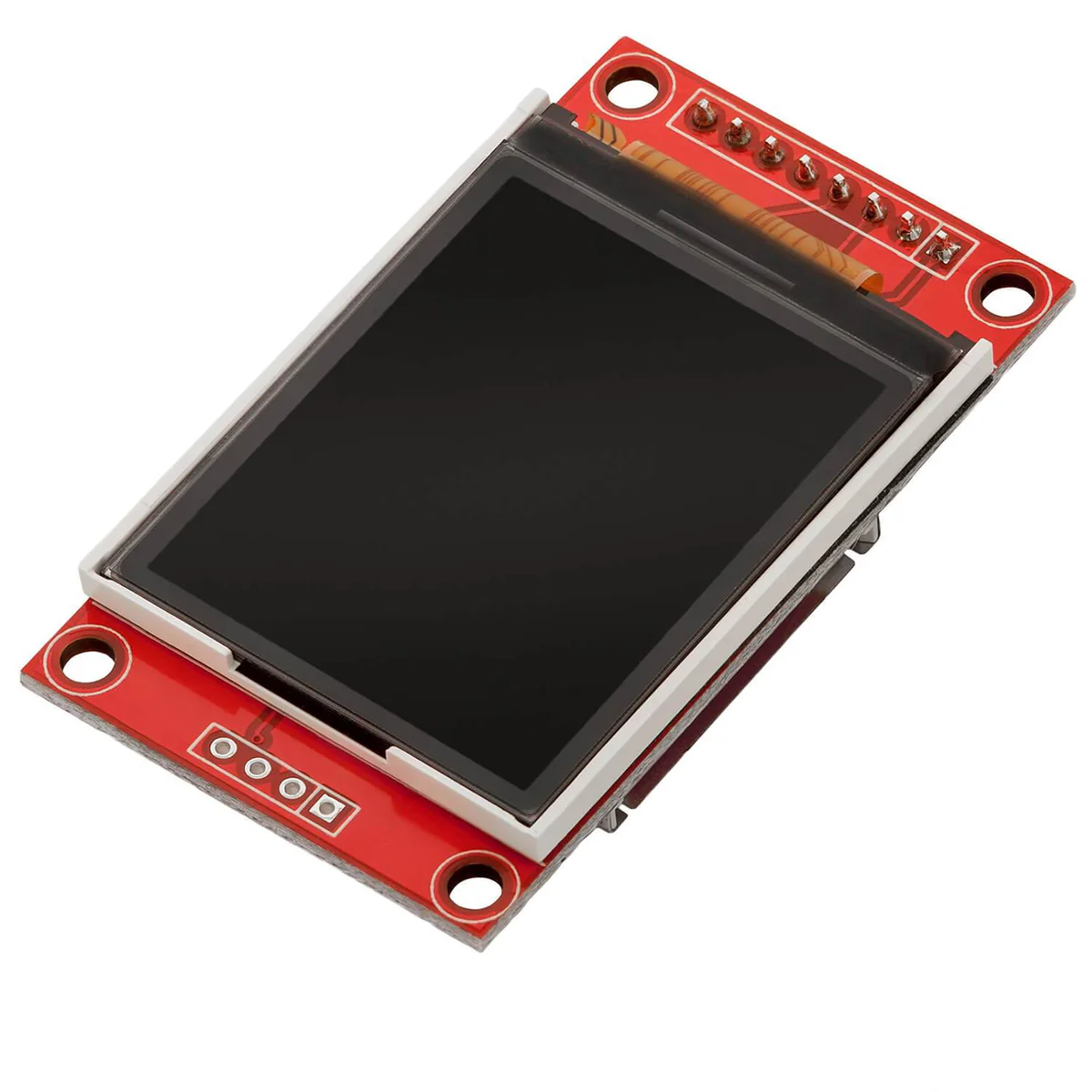

Name: 1.8" SPI TFT LCD Display 128x160 ST7735 with SD Slot - Price in Pakistan | Ampflick
SKU: 6341
Availability: InStock

Sale!

Previous Product

1.8" SPI TFT LCD Display 128x160 ST7735 with SD Slot - Price in Pakistan | Ampflick

1.8" SPI TFT LCD Display 128x160 ST7735 with SD Slot - Price in Pakistan | Ampflick - Image 2

1.8″ SPI TFT LCD Display 128×160 ST7735 with SD Slot – Price in Pakistan | Ampflick

Original price was: ₨1,850.00.Current price is: ₨1,650.00.

Delivered All over Pakistan 🇵🇰

Bring your data to life with the Ampflick 1.8″ Color TFT Module.

This compact, vibrant display offers a 128×160 pixel resolution with 16-bit RGB color (65K shades), making it perfect for displaying custom graphics, sensor data, and icons. Designed for the Pakistani maker community, it includes an integrated microSD card slot on the back, allowing you to load high-resolution bitmaps and log data without extra wiring.

Vibrant Graphics: Powered by the reliable ST7735 driver IC for fast refresh rates and sharp contrast.
Plug-and-Play: Fully compatible with Arduino (Uno/Nano/Mega), ESP32, and STM32 using standard SPI libraries.
Efficiency: Matte anti-glare screen with a low-power backlight (~50mA), perfect for battery-powered wearable projects.
Storage Ready: Built-in SD reader for easy image loading and data logging.

Add to wishlist

Description
Reviews (0)

Description

1.8 inch SPI TFT Display Module (128×160 pixels) with SD Card Slot

High Resolution: 128×160 pixels for crisp text, vivid graphics, and bitmap images.
Built-in SD Reader: Load images and log data directly from the onboard microSD card slot.
Universal Controller: Powered by the popular ST7735 IC, supported by Adafruit GFX and ST7735 libraries.
Matte Anti-Glare Surface: High-quality screen remains visible even in bright lab or outdoor environments.
Wide Compatibility: Standard 4-wire SPI interface works seamlessly with Arduino (Uno, Nano, Mega), ESP32, STM32, and Raspberry Pi.

Efficient Backlight: Low power consumption (approx. 50mA) making it ideal for battery-operated wearable projects.

1. Technical Specifications Table

Feature	Details
Display Size	1.8 Inch (Diagonal)
Resolution	128 x 160 Pixels
Driver IC	ST7735 / ST7735S
Interface	SPI (Serial Peripheral Interface)
Operating Voltage	3.3V to 5V (Logics are 3.3V TTL)
Display Colors	16-bit Full RGB (65K Colors)
Module Dimensions	34.5 x 58 x 7.5 mm
SD Card Slot	Integrated (on back)

“Verified by Ampflick Mentors: Compatible with Adafruit_ST7735 and GFX libraries.” This builds trust with students who often struggle with library compatibility!
